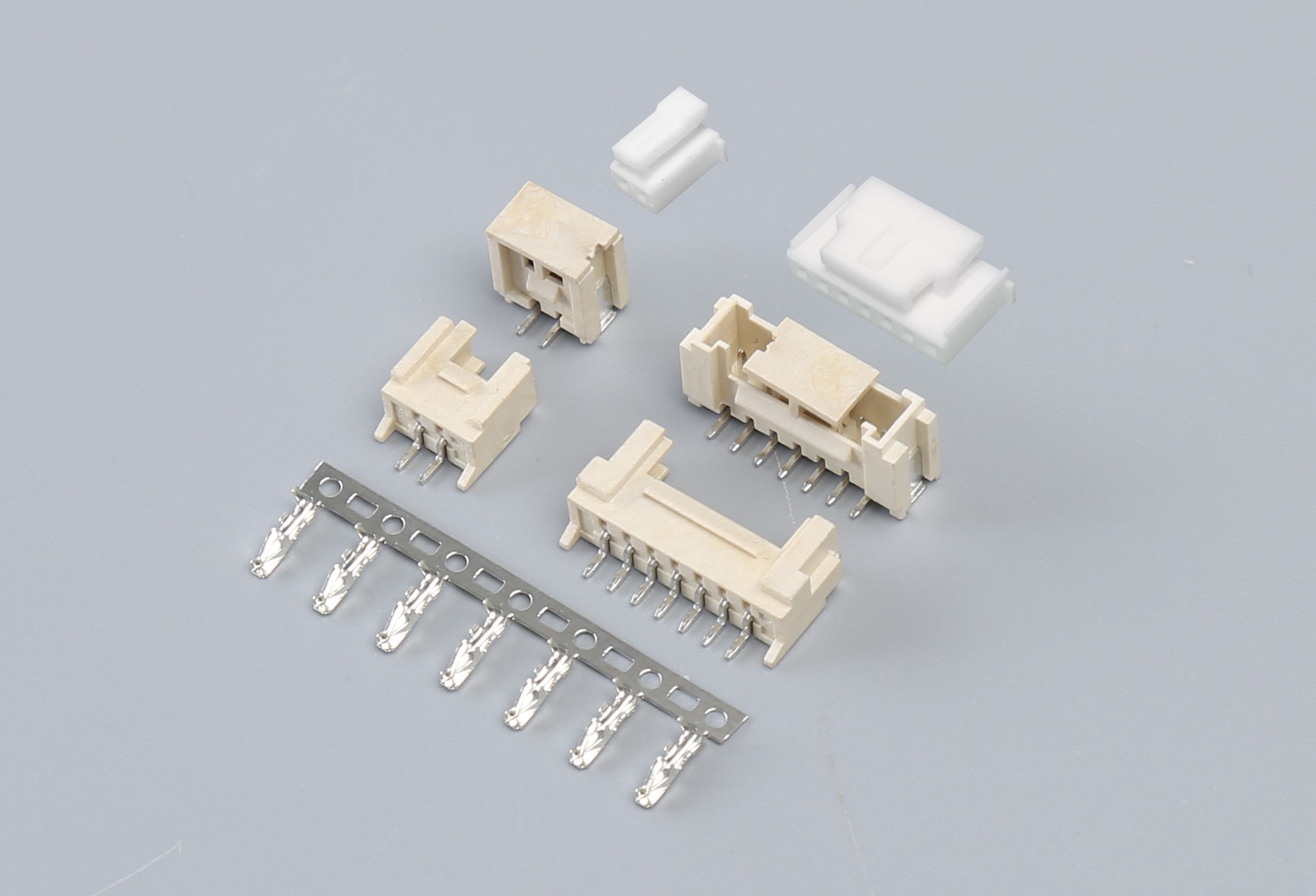

20003-PHS

Electrical properties

1、Current rating: 3A ACDC

2、Voltage rating: 250V ACDC

3、Temperature range: -25 to 85

4、Contact Contact resistance:Initial value/20mΩ max

5、Insulation resistance:1000MΩ min

6、Withstanding voltage:1000V AC/ minute

7、Applicable wire:AWG #22 to #28
